Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Product Name: | A1501-TPE | Pitch: | 1.50mm |
|---|---|---|---|
| Finish: | Tin-plated | Material: | TER: Phosphor Bronzne |
| Insulation O.D,: | 1.15mm(max) | Fire-protection rating: | UL 94V-0 |
| Used in: | A1501 series housing | wire range: | AWG#22--#28 |
| Cahaya Tinggi: | Crimp Wire Connectors,Connector Crimp Terminal |
||
Description:

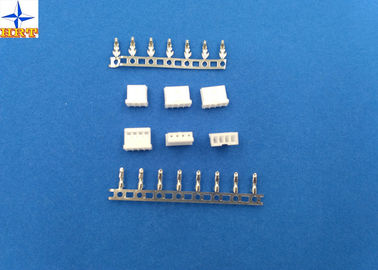

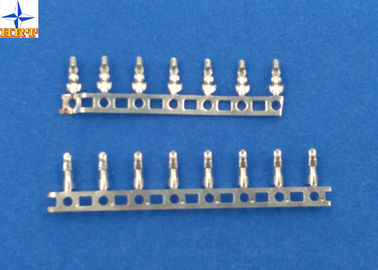

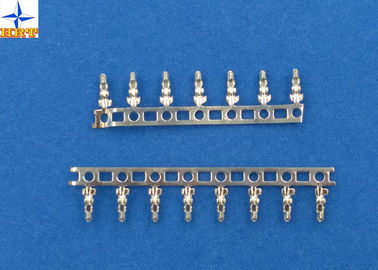

1. A1501 series Terminals are stamped by Phosphor Bronze, E-Stamping beforeTin-plated , Tin-plated we calling A1501-TPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.
2. Terminals' wire range :AWG #22--#28insulation OD is0.90mm(Max).
3. A1501 series terminal Used in A 1501series housing
Actuator Insertion/Withdrawal Force:
| Test Description | Procedure | Requirement |
|
Contact Resistance |
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
| Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) | No Breakdown. |
| Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
Electrical:
| Current rated | 3A AC/DC maximum |
| Voltage rated | 350V AC/DC |
| Withstand voltage | 500V AC/minute |
| Insulation resistance | 1000MΩ min |
| Contact resistance | 20MΩ max |
| Operating temperature | -25 - 85°C |
Drawing:
Quality:
The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
