| Product Name: | A2501-T Terminal | Pitch: | 2.50mm |
|---|---|---|---|
| wire range: | AWG#22#28 | Material: | Brass or Phosphor Bronze |
| Finish: | Tin-plated Gold-flash | Fire-protection rating: | UL 94V-0 |
| Used in: | A2501 series housing | ||
| Cahaya Tinggi: | Crimp Wire Connectors,Connector Crimp Terminal |
||

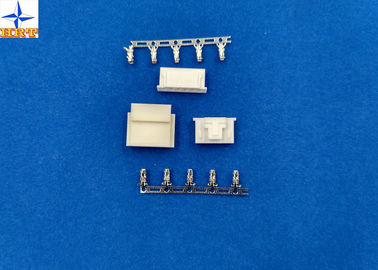

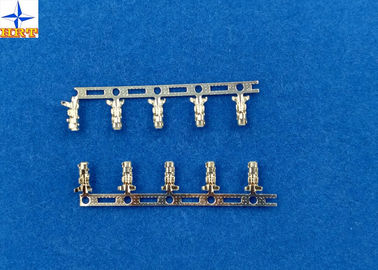

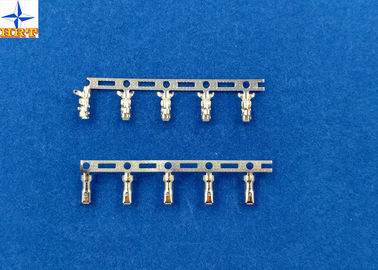

Wire to board pitch 2.50mm Brass or Phosphor Bronze wire connector terminal
Description:
1. Terminals are stamped by Brass or Phosphor Bronze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A2501-TPe, Gold-plated we calling A2501-GPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.
2. Terminals' wire range :AWG #22--#28,insulation OD is1.90mm(Max).
3. A2501 series terminal is E-stamping before Tin-plated
Specifications:
| Test Description | Procedure | Requirement |
|
Contact Resistance |
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 10mΩ (Max.) |
| Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) | No Breakdown. |
| Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.. | 5mΩ (Max.) |
Electrical characteristic:
| Voltage rated | 250V AC ,DC |
| Current rated | 3A AC,DC |
| Withstand voltage | 1000VAC/minute |
| Insulation resistance | 1000MΩ Min |
| Contact resistance | 10mΩ Max |
| Operating temperature | -25°C~85°C |
Drawing:
Quality:
The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
