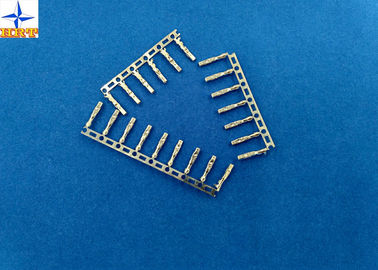

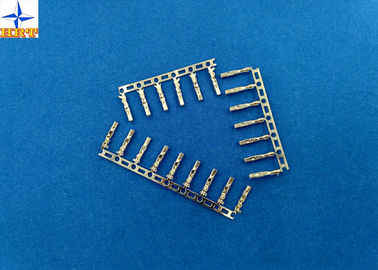

|Place of Origin:||Dongguan, China(mainland)|
|Minimum Order Quantity:||50K PCS|
|Packaging Details:||paper tray with out carton|
|Delivery Time:||5 to 8 working days after payment checked|
|Payment Terms:||TT, Western Union, PayPal, L/C|
|Supply Ability:||100 million pcs per month|
|Pitch:||2.0mm||wire range:||AWG#30 - #26|
|Material:||Phosphor Bronzne||Finish:||Tin-plated or Gold-flash|
|Connector Type:||wire connnector Terminal||Insulation O.D:||1.30mm(Max)|
1, The specification of the product including basic size information, electrical and mechanical properties.
|Basic size information|
|Termination Interface Style||crimp or compression|
|Processing methods||E-stamping before tin-plated or gold-flash|
|Part No.||A2001-TPE or A2001-GPE|

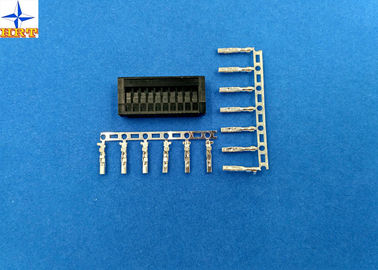

|Mated connector||A2001H/HB series or A2009H series|
|Application||Signal, wire to board type|
|Current Rating||2 A AC, DC|
|Voltage Rating||100V AC, DC|
|Contact Resistance||10mΩ Max|
|Insulation Resistance||1000 MΩ min|
|Withstanding Voltage||800V AC/minute|
|Temperature range||-25℃ to 85 ℃|
|Other information please kindly check the following picture.
2, Related drawing and report
The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!
3. Ratings & Applicable Wires
|Rated Voltage (Max.)||100V AC/DC||Insulation O.D. 1.50mm (Max.)|
|Rated Current (Max.) And Applicable Wires||AWG#24||2.0A AC/DC|
|Ambient Temperature Range||-25℃ ~ +85℃*|
*: Including terminal temperature rise
4. Electrical Performance
|Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)||10mΩ (Max.)|
|4-2||Insulation Resistance||Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)||1000MΩ (Min.)|
|4-3||Dielectric Withstanding Voltage||Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)||No Breakdown.|
|4-4||Contact Resistance on Crimped Portion||Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.||5mΩ (Max.)|
Q:Do you allow multiple design per setup?
A:Yes.We accept OEM/ODM service and allow multiple design per setup.
Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).
Q: How is the goods packaged ?
A: Usually in PE bads, tube, pipe and with outside carton box.
4, we can offer multiple, safe and fast shippment for you!
We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
Kontak Person: Ricky Zou
