Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Category: | Board-in connectors | Suitable terminals: | B2512 series |
|---|---|---|---|
| PC board mounting direction: | Side entry type | Wire range: | AWG22# to 28# |
| Flammability: | UL94V-0 | Row: | Single |
| Cahaya Tinggi: | Circuit Board Connectors,PCB To PCB Connector |
||
2.50mm pitch board-in housing vertical mounting top entrance PCB board connectors
1, The specification of the product including basic size information, electrical and mechanical properties.
Ordering code: B2512HV-NP or B2512HR-NP
Color: white
Pitch: 2.50mm
Material:PA66
Circuits: 2 to 15pins
Terminal material:Brass
Finish terminal: tin-plated
Wire insulation diameter: 1.00mm Max.
Contacts type: Top entry type or Side entry type
Current rating: 3A AC, DC
Voltage rating: 250V AC, DC
(including temperature rise in applying electrical current)
Contact Resistance 20mΩ Max
Insulation resistance: 1,000M Ω min.
Withstanding voltage: 800V AC/minute
Temperature range: -25˚C to +85˚C
Applicable wire: AWG #28 to #22
Applicable PC board thickness: 1.2mm, 1.6mm

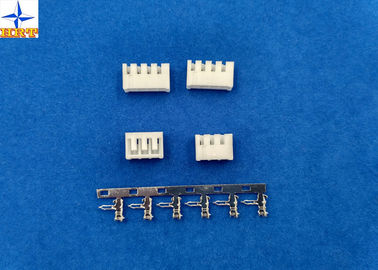

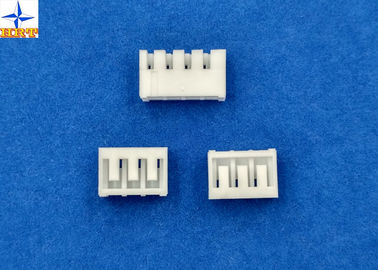

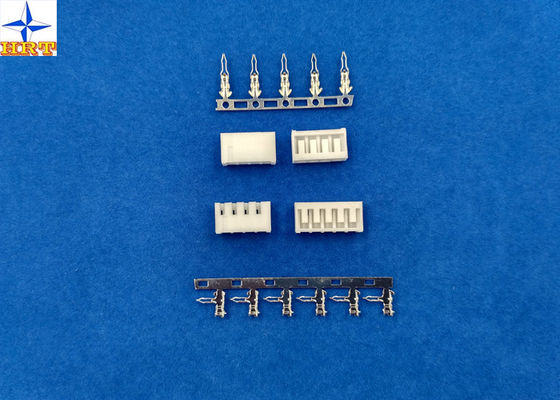

2, The picture display of these series product
Drawings:
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 10mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 10mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 10mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
3, Product's features
This 2.5mm pitch multi-circuit board-in connector meets the needs for high-density mounting on printed circuit boards efficiently and economically. The connector can be used for VCRs, car stereo systems, audio products, and many other consumer-oriented electronic products.
• Housing lances
• Secure mounting on printed circuit boards
• Two types of contacts
