1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer

Cina 1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer pemasok
1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer pemasok 1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer pemasok 1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer pemasok

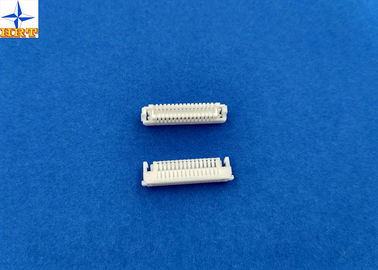

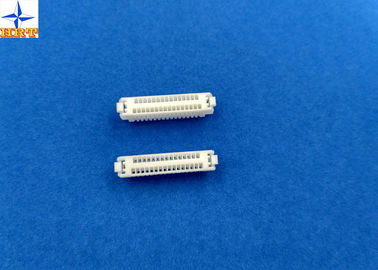

Gambar besar :  1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer

Detail produk:

Place of Origin: Dongguan, China(mainland)
Nama merek: HRT
Sertifikasi: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A1002HA-2XNP

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 5000 pcs
Harga: negotiated
Packaging Details: Reel, Tube(Pipe), Tape, Bag or as required.
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
Detil Deskripsi produk
Category: Wire housing Suitable terminal: A1002T
Material: Nylon66 UL94V-0 Wire range: AWG26# to 28#
Gender: Female Positions: 21 or 31 circuits
Cahaya Tinggi:

Connector Wire To Board

,

Pcb To Wire Connectors

1, Product's specification details


  Basic size information
Color White
Pitch 1.0mm
Housing Material Nylon66 UL94V-0
Application signal, wire to board
Wire Insulation Diameter  0.80mm max.
Terminal processing method E-stamping before tin-plated or gold-flash

                                                     Electrical properties
Current Rating 1A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance 30mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute

                                                        Mechanical properties
Temperature range -25℃ to 85 ℃
Terminal Insertion Force 0.50kgf (Max.)
Terminal/Housing Retention Force 0.50kgf (Min.)
Pin Retention Force 0.50kgf (Min.)

                Other information please kindly check the following picture.

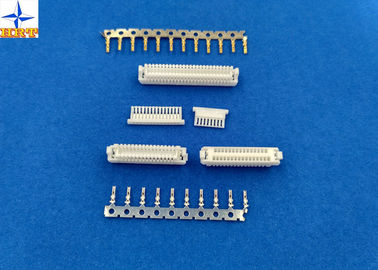

2, Introduction for this series products

Please kindly notice that the A1002 series product, if you can buy this product as a set, the price will be very reasonale and favorable.
1, Terminals:A1002T(tin-plated flash or gold-flash)

2, Housing: A1002H-NP & A1002HA-2XNP & A1002HA-2XNP new version


3, Relevant engineering drawing and test report
The next attachment is detailed product file for your reference, it will be helpful to you.

                                                                    Dimension drawing
1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer
1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer
1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer





1mm pitch Female Wire To Board Connector 21 / 31positions Wire Housing For Computer

4, Application fied of our parts
This product are widely used in household appliance, computer, communication device. Because our defective rate is very low, so our parts are accepted by some famouse company which is with prestigious like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free. And you can have a direct cognition from below pictures.


5, Payment terms and delivery way
Multipe and flexible payment terms and delivery way can be available by us, you can know this clearly through below pictures.
